Quick Start with RabbitMQ

Installation#

	docker run --name rabbitmq \
	-p 5672:5672 \
	-p 15672:15672 \
	--network hm-net \
	--hostname my-rabbit \
	-e RABBITMQ_DEFAULT_USER=user \
	-e RABBITMQ_DEFAULT_PASS=password \
	-v mq_plugins:/plugins \
	-d rabbitmq:3.8-management

Spring Boot Integration#

example:springboot-middlewave-example/springboot-rabbitmq at master · liyown/springboot-middlewave-example (github.com)

Sender#

  1. Sender timeout reconnect (asynchronous) configuration
spring:
  application:
    name: publisher
  rabbitmq:
    host: 192.168.208.128
    port: 5672
    username: user
    password: password
    virtual-host: /hmall
    # Send confirm mechanism
    publisher-confirm-type: correlated
    publisher-returns: true
    # Retry mechanism
    template:
      retry:
        enabled: true
        max-attempts: 3
        initial-interval: 1000
        max-interval: 10000
        multiplier: 2
server:
  port: 7081
  1. Using configuration:
  • Configure message conversion service, the default is JDK serialization, which is not easy to read and takes up a lot of space. Compatibility is not high.
	@Bean
	public MessageConverter messageConverter() {
	    Jackson2JsonMessageConverter jackson2JsonMessageConverter = new Jackson2JsonMessageConverter();
	    jackson2JsonMessageConverter.setCreateMessageIds(true);
	    return  jackson2JsonMessageConverter;
	}
  • Set message send callback

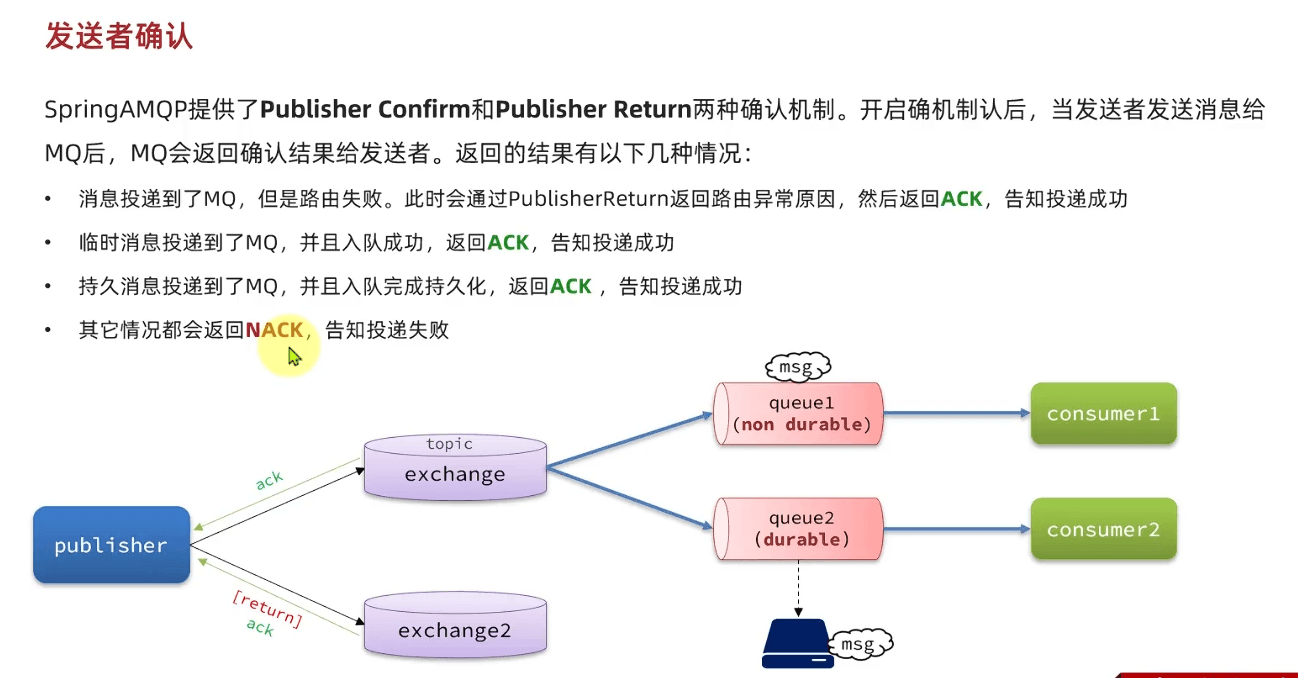

    There are two callback scenarios: one is that the confirm information will be returned when it reaches the exchange, and if it does not reach the queue, the ReturnsCallback will be called back, which is generally an operation and maintenance issue.
    image.png|600
public void init() {
    rabbitTemplate.setReturnsCallback(
            (ReturnedMessage returned) -> {
                System.out.println("Message lost: " + returned.getMessage());
            }
    );
    rabbitTemplate.setBeforePublishPostProcessors((message) -> {
        MessageProperties messageProperties = message.getMessageProperties();
        String messageId = messageProperties.getMessageId();
        System.out.println("messageId: " + messageId);
        return message;
    });

}

JAVA API usage

  1. Usage with callback:
public void testRabiitStart() throws InterruptedException {

    CorrelationData  correlationData = new CorrelationData("1");
    // Set callback
    rabbitTemplate.setConfirmCallback((correlationData1, ack, cause) -> {
        System.out.println("cause: " + cause);
        System.out.println("correlationData: " + correlationData1);
        if (ack) {
            System.out.println("Message sent successfully");
        } else {
            System.out.println("Message sending failed");
        }
    });
    // Queue name
    String queueName = "queue.lyw";


    // Send message, if the queue does not exist, it will be created automatically
    rabbitTemplate.convertAndSend("direct.lyw", queueName, "hello rabbitmq", correlationData);

}
  1. Using delay queue
public void testRabiitMqDelayMessage() {
    CorrelationData  correlationData = new CorrelationData("1");
    rabbitTemplate.convertAndSend("delay.direct", "delay.queue", "hello rabbitmq delay",
                                  (Message message) -> {
                                      message.getMessageProperties().setDelayLong(10000L);
                                      return message;
                                  }
                                  , correlationData);
}

Consumer#

Spring configuration

spring:
  application:
    name: publisher
  rabbitmq:
    host: 192.168.208.128
    port: 5672
    username: user
    password: password
    virtual-host: /hmall
    listener:
      simple:
        # Indicates automatic acknowledgment, when sending fails, it will retry, if retry fails, it will send to the dead letter queue (three strategies)
        acknowledge-mode: auto
        retry:
          enabled: true
          max-attempts: 3
          initial-interval: 1000
          max-interval: 10000
          multiplier: 2
          stateless: true
server:
  port: 7082

Create exchange, queue, binding relationship

	@Bean
	public DirectExchange directExchange() {
	    return new DirectExchange("direct.lyw");
	}

	@Bean
	public Queue queue() {
	    return new Queue("queue.lyw");
	}

	@Bean
	public Binding binding(Queue queue, FanoutExchange fanoutExchange) {
	    return BindingBuilder.bind(queue).to(fanoutExchange);
	}

Create message listener

	@RabbitListener(queues = "work.queue1")
	public void onMessageWorkerQueue2(String message) throws InterruptedException {
	    Thread.sleep(200);
	    Thread thread = Thread.currentThread();
	    log.info("Work queue 2 received message: {},Time:{}, Thread{}", message, LocalDateTime.now(), thread.getName());
	}

Dead letter queue initialization

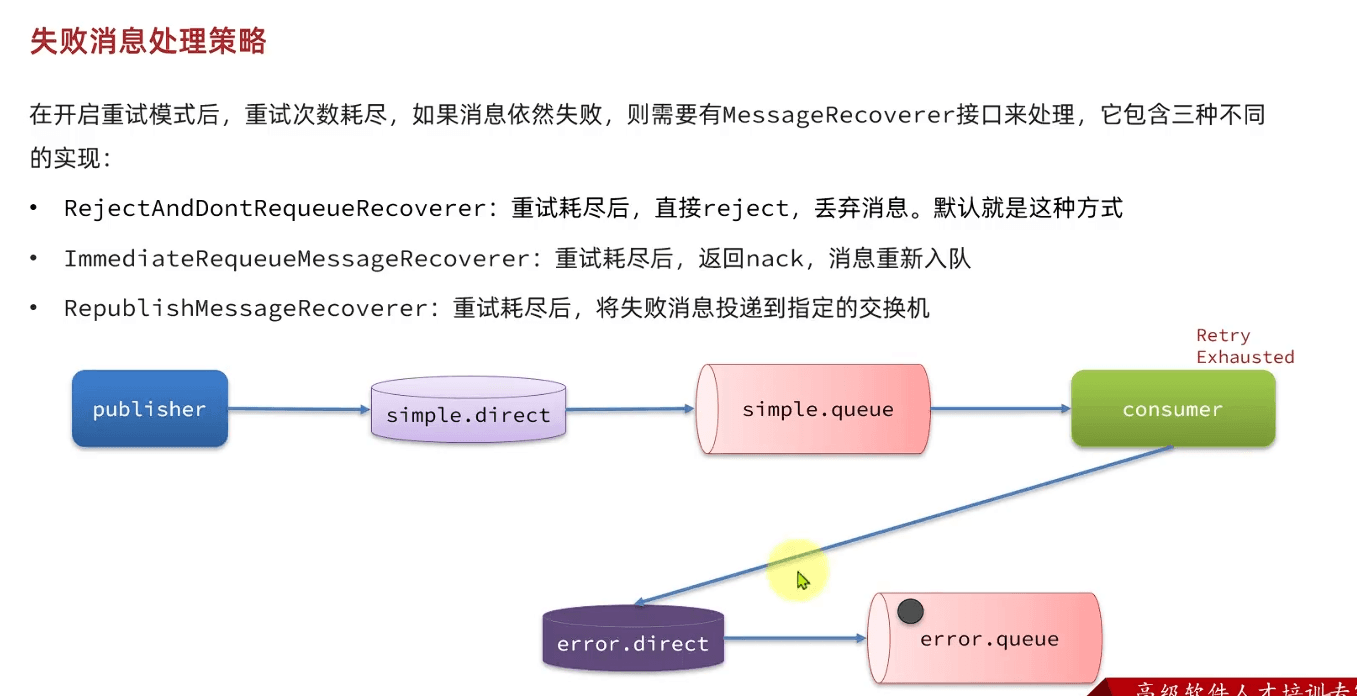

After reaching the retry count, there are three strategies:
image.png|600

	@Bean
	public MessageRecoverer republishMessageRecoverer(RabbitTemplate rabbitTemplate){
	    return new RepublishMessageRecoverer(rabbitTemplate, "error.direct", "error");
	}

Using delay queue#

Install plugin (github)
rabbitmq/rabbitmq-delayed-message-exchange: Delayed Messaging for RabbitMQ (github.com)
Copy plugin to plugin folder
Install plugin

rabbitmq-plugins enable rabbitmq_delayed_message_exchange

Create exchange, queue, binding relationship

	@Bean
	public Queue delayQueue() {
	    return new Queue("delay.queue");
	}

	@Bean
	public DirectExchange delayExchange() {
	    return ExchangeBuilder.directExchange("delay.direct").delayed().durable(true).build();
	}

	@Bean Binding delayBinding(Queue delayQueue, DirectExchange delayExchange) {
	    return BindingBuilder.bind(delayQueue).to(delayExchange).with("delay.queue");
	}

Send message

	@Test
	public void testRabiitMqDelayMessage() {
	    CorrelationData  correlationData = new CorrelationData("1");
	    rabbitTemplate.convertAndSend("delay.direct", "delay.queue", "hello rabbitmq delay",
	                                  (Message message) -> {
	                                      message.getMessageProperties().setDelayLong(10000L);
	                                      return message;
	                                  }
	                                  , correlationData);
	}

	@Test
	public void testRabiitMqDelayMessage2() {
	    rabbitTemplate.convertAndSend("delay.direct", "delay.queue", "1812793267355439105", message -> {
	        message.getMessageProperties().setDelayLong(10000L);
	        return message;
	    });
	}

Consume delayed messages: Same as ordinary queues
